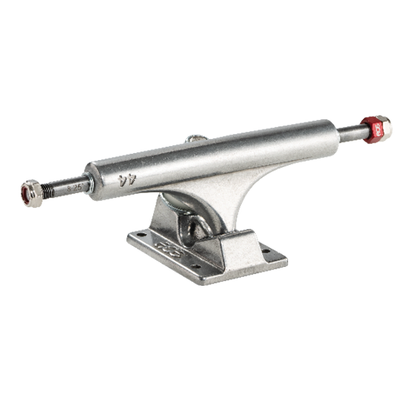

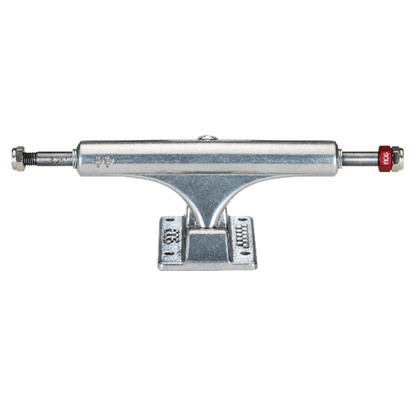

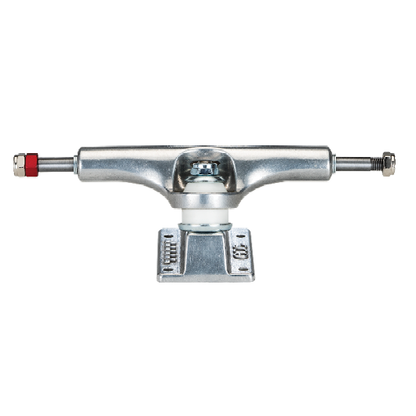

Ace AF1 Polished (Set of 2) Trucks

Ace AF1 Polished (Set of 2) Trucks

Regular price $57.95 USD
Regular price $64.95 USD Sale price $57.95 USD
Sale Sold out

The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.

The Ace AF1, tomorrow’s technology today!

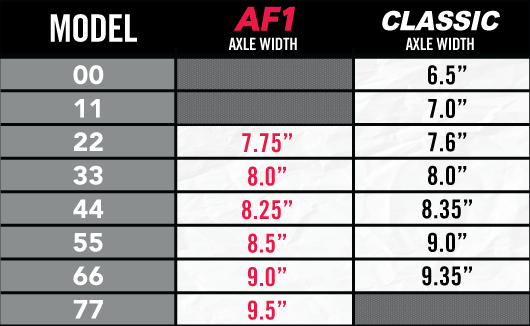

• 33 - Axle width: 8” (203mm)
• 44 - Axle width: 8.25” (209mm)
• 55 - Axle width: 8.5” (215mm)
• 66 - Axle width: 9” (229mm)

• Truck height: 2.1” (53mm)
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.
